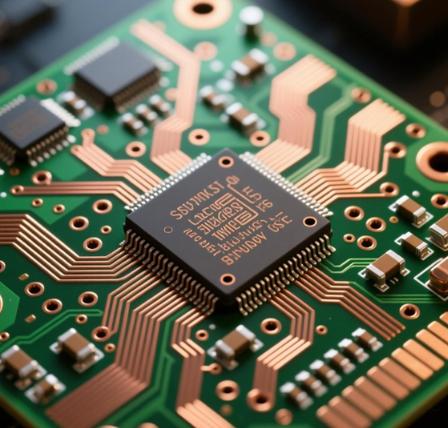

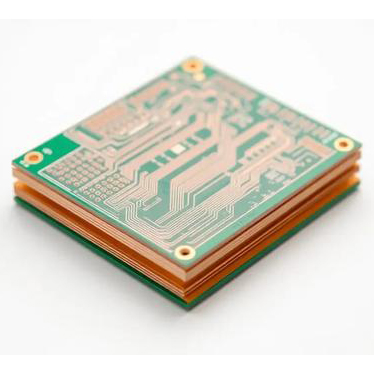

Heavy Copper PCB

Heavy Copper PCBs adopt thick copper foil with outstanding high-current capacity and excellent thermal dissipation. They are mainly used for high-power power modules, inverters, EV chargers, energy storage equipment and industrial drivers. Capable of carrying large current, reducing trace temperature rise and enhancing long-term operational stability.

Description

Common Substrates
High Tg FR-4, aluminum base PCB, copper base PCB; high-temperature epoxy laminates; partial high-frequency hybrid heavy copper boards

Key Electrical Parameters
Available finished copper weight: 2oz, 3oz, 4oz, 6oz, 8oz, 10oz
Large conductive cross-section and low DC resistance of traces
Superior thermal conductivity to assist component heat dissipation
Withstand instantaneous high surge current

Manufacturing Capabilities
Layers: 1 ~ 16 layers
Precise heavy copper etching control to prevent undercut and trace notching
Support combined processes: heavy copper + resin plug vias, heavy copper impedance boards, heavy copper step boards
Surface finishes: HASL, ENIG, hard gold plating etc.
